Moto Guzzi Breva 1100, 2009

Moto Guzzi Breva 1100, 2009

USA SPECIFICATIONS

ENGINE
Type 90° V-Twin, four-stroke
Cooling system Air cooled
Displacement 1,064 cc
Bore and stroke 3.6” x 3.15” (92 mm x 80 mm)
Compression ratio 9,8 : 1
Timing system Two overhead valves operated by light alloy push-rods and rockers; exhaust valve maximum lift: 106° B.T.D.C. of overlap inlet valve maximum lift: 104° A.T.D.C. of overlap
Maximum power 63 KW (86 CV) at 7,800 rpm
Maximum torque 86.5 Nm at 6,000 rpm
Fuel system Weber-Marelli electronic fuel injection with stepper motor control
Starting system Electric
Ingition Inductive discharge, digitally controlled, electronic twin spark ignition
Exhaust system Stainless steel, 2 in 1, with three way catalyser and Lambda probe oxygen sensor

TRANSMISSION
Gear 6 speed
Internal ratios 1^ 17/38 = 1 : 2.235
2^ 20/34 = 1 : 1.700
3^ 23/31 = 1 : 1.347
4^ 26/29 = 1 : 1.115
5^ 31/30 = 1 : 0.967
6^ 29/25 = 1 : 0.862
Lubrication Splash
Primary drive Helical gears, ratio 26/35 = 1 : 1.458
Final drive CA.R.C. Compact Reactive Shaft Drive; double universal joint with floating bevel gear, ratio 12/44 = 1 : 3.667
Clutch Dry

CHASSIS
Frame Double cradle, in high tensile strenght tubular steel

Wheelbase 58.86” (1,495 mm)
Trail 4.7” (120 mm)
Rake 25°30’
Steering angle 32°
Front suspension Telescopic hydraulic fork with Ø 45 mm, preload adjustable
Front wheel travel 4.7” (120 mm)
Rear suspension Single arm suspension progressive linkage, rear shock absorber
adjustable in rebound and pre-load (hydraulic)
Rear wheel travel 5.5” (140 mm)
Front brake Twin Ø 12.6” (320 mm) stainless steel floating discs, four piston calipers
Rear brake Single Ø 11.1” (282 mm) steel disc, two piston caliper
Wheels three spokes light alloy wheels, gravity casting
Front wheel 120/70 ZR17”
Rear wheel 180/55 ZR17”
Front tyre 3.50” x 17”
Rear tyre 5.50” x 17”

Moto Guzzi Bellagio, 2009

Moto Guzzi Bellagio, 2009

ONE MOTORBIKE, ONE PLACE, ONE STYLE.

The new Bellagio symbolises the depth of the relationship between Moto Guzzi and its surrounding territory. This relationship is so strong that the immense beauty of the Lariano area affects both the ideas and creativity of man and in a sense leads him to create works of natural beauty in all his endeavours.

This empathy between the local environment and human inventiveness can be clearly seen in the new Moto Guzzi Bellagio that identifies a place known the world over for its beauty with the free spirit of those that revel in motor cycling. Individuality and sheer style are embodied in a reserved, but sophisticated design that displays highly advanced innovative technological solutions balanced with a trendy image.

The CARC (Reactive Shaft Drive System) is a good example of this advanced technology. This system transforms the might of the new 940 cc engine into silky smooth acceleration making this machine Moto Guzzi’s most powerful naked bike. Other indicators are seen in the presence of the progressive rear suspension system, in the Brembo floating caliper brake system that act on 320 mm discs, in the rear shock absorber and the fully adjustable forks. These technical high quality solutions favour active safety, set a dynamic equilibrium and provide such riding pleasure that the Bellagio is the new point of reference in the category. The Bellagio has the temperament of a naked under the skin of a custom machine. The spoked wheels, drag bar, rear-set saddle and forward positioned footpegs are just a few examples of the details of a style that concentrates weight on the rear wheel giving the impression of a bike that is fixed to the ground, ready to take off at the drop of a hat.

The new 940 cc engine is more than capable of making this machine fly. While the engine is docile and vibration-free, it puts out huge power with immense torque from even very low revs. This power can be heard in the legendary engine note emitted from new twin silencers that sing a song called Bellagio.

FEATURES:

New 940 cc engine
Progressive rear suspension system
Brembo floating caliper brake system that act on 320 mm discs
Ffully adjustable forks
Sparkling pearlescent white colour schemes that will be available on the Bellagio as the base for an elegant twin colour scheme to contrast with the chrome finish on the frame.

Technical Data
Engine Four-stroke V 90 twin
Cooling Air cooled
Capacity 935.6 cc
Bore and stroke 95 x 66 mm
Compression ratio 10
Timing 2 valves per cylinder commanded by light alloy cam acting on rocker arm and mechanical tappets
Timing diagram Intake valve opening 24 ° before upper TDC.
Intake valve closing 52 ° after lower TDC.
Exhaust valve opening 54 ° before lower TDC.
Exhaust valve closing 22 ° after upper TDC.
measured with rocker arm/valve play
Maximum power output 55 KW at 7,200 rpm
Max Torque 78 Nm at 6,000 rpm
Fuel supplì Multipoint sequential electronic injection, Magneti Marelli IAW phased, alfa-n system; 2 Ø 40 mm throttle bodies with Weber IW 031 injectors
Starter Electric
Ignition Digital electronic with Magneti Marelli IAW 15RC inductive discharge
Exhaust system 2 stainless steel pipes connected to 1 expansion chamber connected to two chromed steel silencers; 3-way catalyser with Lambda probe.
Homologation Euro 3

Transmission
Gearbox 6 speed - constantly engaged cogs with integrated flexible couplings
Gear ratios 1st 17/38 = 1 : 2.235
2nd 20/34 = 1 : 1.7
3rd 23/31 = 1 : 1.348
4th 26/29 = 1 : 1.115
5th 31/30 = 1 : 0.968
6th 29/25 = 1 : 0.862
Lubrication Forced lubrication with lobe pump and pressure regulator
Primary drive Helicoidal gears, ratio 24/35 = 1 : 1.458
Final drive Shaft drive, ratio 12/44 = 1 : 3.667
Clutch Dry mechanically operated twin plate

Chassis
Frame Very rigid high tensile steel tubular twin cradle
Wheelbase 1,570 mm
Rake 165 mm
Steering angle 28°
Front suspension Marzocchi Ø 45 mm adjustable front forks
Front wheel travel 140 mm
Rear suspension Single swingarm with progressive action - single rebound adjustable shock absorber with easy to operate pre-load setting knob
Rear wheel travel 120 mm

Bimota Tesi Millenium

Bimota Tesi Millenium

Husaberg, 2010

Husaberg, 2010

Key Features

Upside-down fork
The fully adjustable 48 mm fork from WP Suspension has been further optimised to ensure even more responsive handling and provide high damping reserves. Combined with the increased 22 mm offset (previously 19 mm) of the CNC-machined triple clamps, this guarantees more reliable front wheel control.

Airbox
Positioned directly behind the fuel cap, it is covered by the front section of the seat. The airbox’s elevated position guarantees the intake of cool, clean air and maximum wading depth. The intake duct is in the direct downdraft from the filter to the cylinder.

Tank
The slim, 8.5 litre tank runs far below the seat to provide an optimal centre of gravity and is equipped with both a compact fuel pump and new reserve sensor. The transparent polyethylene also enables the fill level to be determined at a glance.

Exhaust System
The integration of the stainless steel exhaust manifold offers optimum protection from rock damage and keeps the rider from coming into direct contact with it.

Brakes
The latest Brembo front brake with optimised front brake pads
for maximum braking performance at minimal effort. Effective single-piston brake caliper in the rear. Ultra-light wave discs for the ultimate braking performance and better self-cleaning of the brakes.

PDS Shock
Fully adjustable WP PDS shock with optimised setting for even more traction. Adjustable rebound damping and variable high and low speed compression damping guarantee the perfect configuration for all conditions.

Frame
Light double-cradle perimeter frame made of chrome-molybdenum. Guarantees the greatest torsional rigidity and secure tracking stability. Extremely slender lower tube loops. Minimal overall width. Unbeatable ground clearance.

Silencer
Especially light and made of highquality aluminium, the silencer assures compliance with all official noise limits.

Subframe
Cross-linked polyethylene (PE) ensures that the plastic construction has the highest stability values and a reduced weight at the same time. Many electric components have been perfectly imbedded in the rear fender.

Specification:

Engine
Engine type Single cylinder, 4-stroke
Displacement 565.5 cc
Bore/Stroke 100 / 72 mm
Compression ratio 12,2 : 1
Starter/Battery Electric starter/12 V 7 Ah
Transmission 6 gears
Fuel system Keihin EFI
Control 4 V / OHC with rocker levers
Lubrication Pressure lubrication with 2 oil pumps
Engine Oil Motorex, SAE 10W-50
Primary ratio 33 : 76
Secondary drive 13 : 38 (13 : 52)
Cooling Liquid cooling
Clutch Wet multi-disc clutch, hydraulically operated
Engine Management System Keihin

Chassis
Frame Double cradle perimeter design 25CrMo4
Subframe Cross-linked Polyethylene (PE)
Handlebar Magura, Aluminium Ø 28 / 22 mm
Front suspension WP-USD Ø 48 mm
Rear suspension WP-PDS shock absorber
Suspension travel front/rear 300 / 335 mm
Front/rear brakes Disc brake Ø 260 mm/Disc brake Ø 220 mm
Front/rear rims 1.60 x 21" DID/2.15 x 18" DID
Front/rear tires 90/90-21"; 140/80-18"
Chain 5/8 x 1/4"
Silencer Aluminium
Steering Head Angle 63.5°
Wheel base 1,475 ± 10 mm
Ground clearance 390 mm
Seat height 985 mm
Tank capacitiy approx. 8.5 litres
Weight (Ready to Race) approx. 114,5 kg

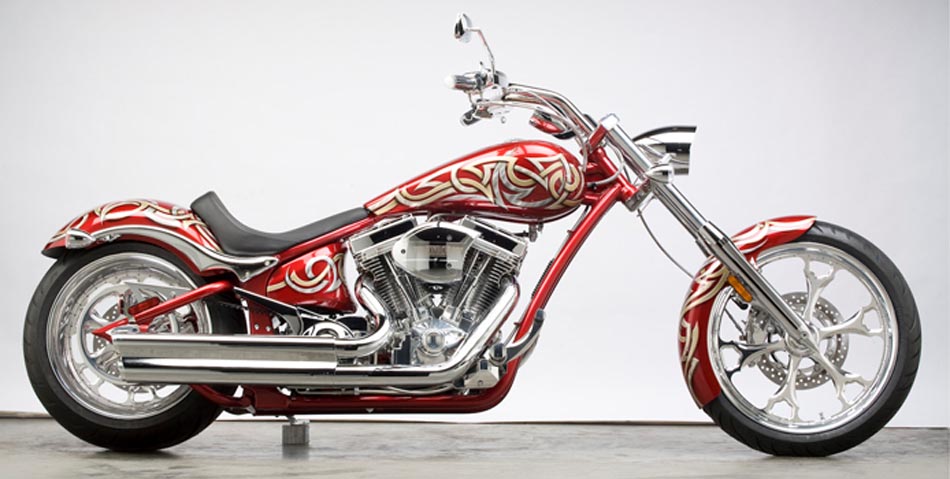

Mastiff, 2010

Mastiff, 2010

Specification:
Factory Warranty........2 Years Manufacturer
Dry Weight - Front......281 lbs (127 kg)
Dry Weight - Rear.......427 lbs (194 kg)
Dry Weight - Total.......708 lbs (321 kg)
GVWR........................1130 lbs (512 kg)
GAWR - Front............390 lbs (177 kg)
GAWR - Rear.............40 lbs (336 kg)
Fuel - Total.................4.6 gal (17.4 L)
Fuel - Main.................3.9 gal (14.7 L)
Fuel - Reserve.............0.7 gal (2.7 L)
Oil Capacity................2.875 - 3 qts (2.7 - 2.8 L)
Frame Rake................39 degrees
Tree Rake...................3 degrees
Trail...........................4.81" (122.2 mm)
Front Suspension........41 mm Telescopic
Fork Length...............+2.0" (50.8 mm)
Seat Height................24.25" (616 mm)
Ground Clearance........4.0" (101.6 mm)
Wheel Base................77.5" (1968 mm)
Total Length..............103" (2616 mm)
Front Brake...............4-Piston Diff Bore
Rear Brake................4-Piston
Front Tire...................MH120/70-21 62V
Rear Tire....................300/35-R18 87V
Front Tire Pressure......40 psi (275.8 kPa)
Rear Tire Pressure......42 psi (289.5 kPa)
Front Wheel................21" x 3.50" (533.4 mm x 88.9 mm)
Rear Wheel................18" x 10.50" (457.2 mm x 266.7 mm)
Engine........................OHV 45 degree V-Twin
Displacement..............117 c.i. (1917 cc)
Bore x Stroke............4.125" x 4.375" (104.8 mm x 111.1 mm)
Compression Ratio.....9.6:1
Fuel System...............Carbureted / CLEFI
Transmission..............6-Speed
Primary Drive............Comp/Balance Drive
Final Drive................1.125" (28.6 mm) Belt
Ignition.......................Electronic Single Fire
Charging Output........35 Amp
Battery......................310 CCA/Sealed AGM

motor ridley Auto

Ridley branded motorcycles is quite unique and interesting. this is Auto-Glide Classic type from ridley

motor ridley Auto

USA motor ridley 2008 Auto-Glide Classic type-Ridley Review Motor Cycle - Automatic USA Motor
motorcycles Specification:
Engine:
Manufacturer : Ridley
Configuration : Air cooled, 90 degree, V-Twin, 2 valves/ cylinder
Displacement : 44ci/ 738 cc
Compression ratio : 8.5 : 1
Starter : Electric
RPM : 3850 @ 80 MPH
Drive system:
Manufacturer : Ridley
Transmission type : Type II, Automatic CVT
Primary drive : Kevlar/ Rubber belt
Final drive : Belt
Wheel:
Front : 16 in/ 40.6cm - 60 (spoke)
Rear : 16 in/ 40.6cm - 60 (spoke)
Breaks:
Front : Hydraulic-DOT5, 4 pistons (Ferodo pad)
Rear : Hydraulic-DOT5, 4 pistons (Ferodo pad)
Dimensions:
Fuel Tank : 4.2 gallon/ 15.9 L
Seat height : 24.5 in/ 62.2 cm
Foot rest height : 6 in/ 15.2 cm
Length (total) : 97 in/ 246.4 cm
Width (total) : 37 in/ 94 cm
Height (total) : 41 in/ 104.1 cm
Ground clearance : 4.75 in/ 12.1 cm
Dry Weight : 460lbs/ 209 kg
Gross Weight : 760lbs/ 345 kg
Price/ Color:
MSRP

Suzuki Biplane Concept Design

Probably not, but chances are you'll be able to fly in this thing and put just about any other vehicle on the road to shame with your speed.The Suzuki Biplane motorcycle that is currently on display at the Tokyo Auto Show was inspired design-wise by the classic Wright Brothers biplane, but I personally think it looks more like that red mean machine that Akira rode in the groundbreaking anime by Katsuhiro Otomo. Will there be secret wings hidden inside this beast?

Yamaha YZF R1 Red

2011 New Ducati Monster

All Monsters felt very light, small and easy to deal with, although the attitude muscles, the rider did not need muscle. A slightly different from 696 and 796 ergonomically big brother in 1100. Height of the seat is slightly higher than less, and slightly lower than Monster-greater, capacity. The wide handlebar provides excellent control of muscular front end, changes direction easily, and is feather-light feel.

If you are a medium-high to high rider, you will have trouble continuing to read the instrument when driving in high concentration mode, for example in the city center or in a congested highway. Nothing exciting about the instrument panel, so I ignored it completely to such a degree that I forgot to record accurate fuel consumption and things like that.

Only a very visible indication on the console is light gear change, which is useful when the tear-B on the road quickly. Hopefully I did not rack ticket is too much, because I rarely use the speedometer at all in my test.

With the new 2011 Monster 796, Ducati has completed the line-up of cold air standard. These are relics of the old 800 and put himself in the middle between the entry level 696 and 1100 more violent.

2011 New Ducati Monster

2011 Ducati Monster 796 Specifications

Chassis

Frame: Tubular steel Trellis frame
Wheelbase: 1450mm (57.1in)
Rake: 24°
Front suspension: Showa 43mm upside-down forks
Front wheel travel: 120mm (4.7in)
Front wheel: Y-shaped, 5-spoke in light alloy 3.50 x17
Front tyre: 120/70 ZR17 Pirelli Diablo Rosso
Rear suspension: Progressive linkage with preload and rebound Sachs adjustable monoshock
Rear wheel travel: 148mm (5.8in)
Rear wheel: Y-shaped, 5-spoke in light alloy 5.50 x 17
Rear tire: 180/55 ZR17 Pirelli Diablo Rosso
Front brake: 2 x 320mm discs, 4-piston radial caliper
Rear brake: 245mm disc, 2-piston caliper
Fuel tank capacity: 15l – 3.8gallon (US) / 13.5l – 3.6gallon (US) ABS version
Dry weight: 167kg (369lb) / 169kg (373lb) ABS version
Instruments: Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, air temperature, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system
Warranty: 2 years unlimited mileage
Body Colour (frame/wheel): Red (red / back) – Arctic white silk (red / back) – Diamond black silk (red / back) – Monster Art colours (red / back)
Versions: Dual seat
Seat height: 800mm (31.5in)
DDA: System-ready for Ducati Performance accessory
DTC: Not available on this model
ABS: Available upon request

Engine

Type: L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
Displacement: 803cc
Bore x Stroke: 88 x 66 mm
Compression ratio: 11:1
Power: 64kW – 87hp @ 8250rpm
Torque: 8.0kgm – 58lb-ft @ 6250rpm
Fuel injection: Siemens electronic fuel injection, 45mm throttle body
Exhaust: Lightweight 2-1-2 system with catalytic converter with twin lambda probes

Transmission

Gearbox: 6 speed
Ratio: 1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Primary drive: Straight cut gears; Ratio 1.85:1
Final drive: Chain; Front sprocket 15; Rear sprocket 39
Clutch: APTC wet multiplate with hydraulic control

Emissions

Standard: Euro 3 (Europe version) – USA: follows the US Federal Regulation

Honda Interceptor VFR800FI Collection

Honda Interceptor VFR800FI wallpaper

2011 Benelli Cafe Racer 1130 Sportbike

2011 Benelli Cafe Racer 1130 Official Pictures

2011 Benelli Cafe Racer 1130 Motorcycle

2011 Benelli Cafe Racer 1130 Sportbike

2011 Benelli Cafe Racer 1130 Seat and Taillight

Honda Motorcycle Show

Honda CBR Design

HONDA inovation about the Honda CBR Design change.

every year honda type CBR always icrease the new technology to inovate the motorcycle part, so make better the motorcycle concept of motorbike ability for that Honda CBR type.

Honda CBR Design

Honda CBR, Honda, Specification motorbike, motorcity, concept, safety riding motorbike.
